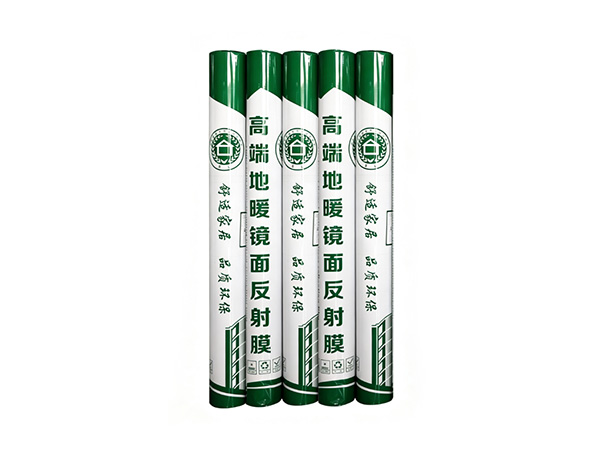

Hydronic Underfloor Heating Reflective Film

Hydronic underfloor heating reflective film is a dedicated radiant barrier material tailor-made for water-circulated underfloor heating systems.Laid over insulation boards and beneath hydronic heating pipes,this functional film reflects downward infrared thermal radiation back toward the finished floor surface.It effectively cuts heat loss into the concrete slab and structural floor,accelerates warm-up speed and ensures uniform floor temperature distribution.Widely adopted in hydronic radiant heating projects for apartments,villas,offices,hotels and commercial retrofits,this reflective film has become a standard accessory for professional wet screed and dry hydronic floor heating installations.As international building codes continuously raise requirements for energy conservation,hydronic underfloor heating reflective film remains a preferred choice for heating contractors worldwide.

High-grade hydronic underfloor heating reflective film is a composite material constructed from a robust polymer base layer laminated with a high-purity reflective metallic coating.The reflective surface is treated with anti-oxidation and anti-corrosion finishing to maintain stable infrared reflectivity under repeated temperature cycling caused by hot water circulation.Unlike ordinary thin aluminium foil,hydronic heating grade reflective film features enhanced tear resistance,tensile strength and dimensional stability.It can withstand the pressure and impact during screed pouring without cracking,peeling or delamination,securing long-term stable performance under continuous working conditions.Many variants are printed with grid marking lines,helping installers arrange PEX or PERT pipes at consistent spacing,avoid pipe displacement and improve the accuracy and efficiency of on-site pipe layout.

The core working principle is infrared radiant heat reflection.In hydronic floor heating systems,hot water flows through embedded pipes and releases heat by conduction and radiation.Without reflective film,a large share of infrared heat radiates downwards and gets absorbed by the concrete substrate.The heavy slab consumes a great amount of thermal energy before the room can reach the preset temperature,leading to slow heating response and substantial energy waste.Once the reflective film is installed under the heating pipes,its high-reflectivity surface intercepts downward infrared radiation and bounces heat upward to the floor covering.Cooperating with the underlying insulation board to block conductive heat transfer,this combination locks thermal energy in the living zone.Rooms heat up faster and eliminate cold spots across the floor surface.

This reflective film delivers obvious energy-saving advantages for hydronic heating systems.It can reduce downward radiant heat loss by 15%to 25%,lowering the continuous operating load of boilers and heat pumps.The target indoor temperature is achieved more quickly,and the heating equipment does not need to run at high power all the time.This reduces end users’heating expenditure and lessens wear and tear on boilers,circulation pumps and the whole hydronic system.Besides radiant heat control,the polymer backing offers reliable moisture-proof performance.It blocks rising moisture from the concrete base,protects plastic heating pipes from damp corrosion and inhibits mould and mildew accumulation under the floor.

Premium hydronic underfloor heating reflective film complies with international indoor building material standards.It contains no volatile harmful substances and is odour-free.Under normal operating temperatures of hydronic floor heating,the film will not shrink,melt or release toxic vapour.Flame-retardant options are available to meet different building fire safety codes.Supplied in lightweight roll form,the film is convenient to transport,unroll and cut to fit irregular room layouts.

It is mainly designed for hydronic water floor heating,compatible with both wet screed systems and dry panel hydronic heating solutions.It works well under ceramic tiles,marble,laminate flooring and engineered hardwood.It suits new residential construction and old building heating renovation.In green low-carbon building projects,hydronic underfloor heating reflective film helps reduce overall building energy consumption and supports global energy-saving and carbon-reduction targets.

In summary,hydronic underfloor heating reflective film integrates efficient radiant heat reflection,moisture resistance and convenient installation.It optimises the operation performance of water-based underfloor heating systems,cuts energy bills and extends the service life of the entire heating setup.Reliable and cost-effective,it is an indispensable accessory for modern hydronic radiant floor heating projects and enjoys stable demand in global construction markets.
